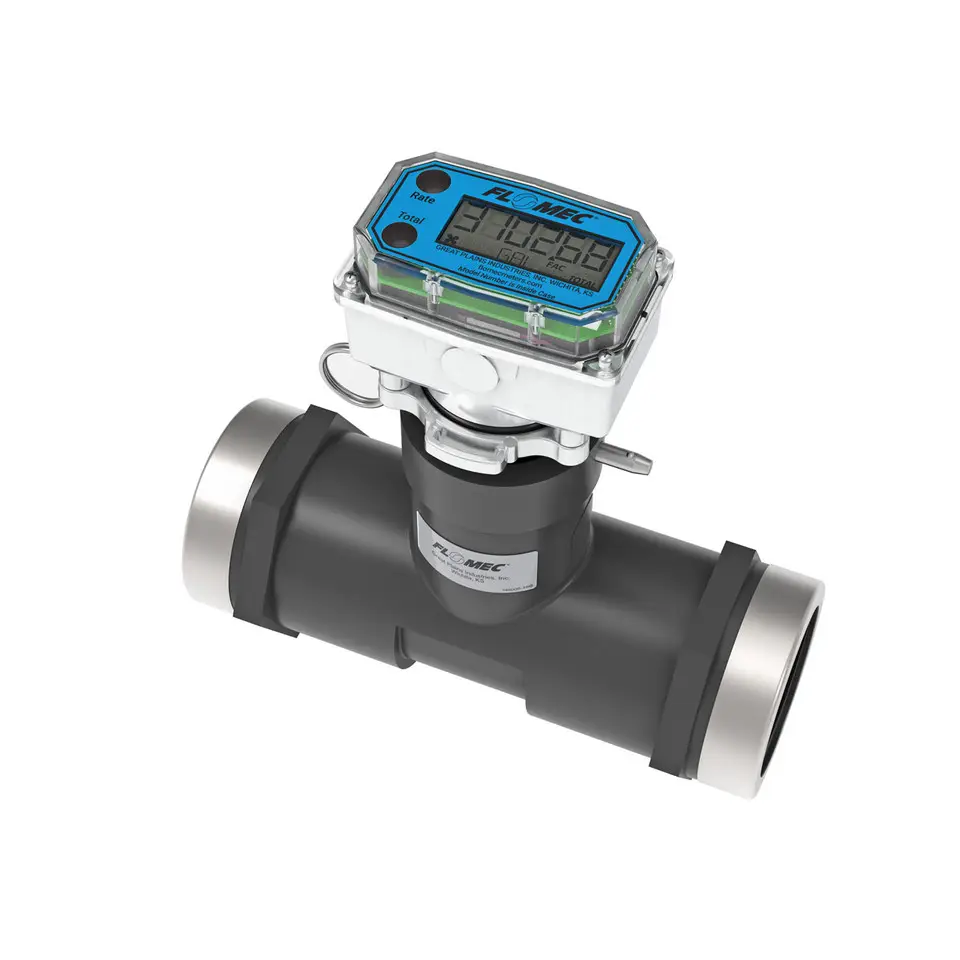

The AQUAsonic® is a FLOMEC insertion ultrasonic flow meter for water, using sound waves to measure flow rate and total volume without moving parts, offering high accuracy (±2%) for irrigation/commercial use in PVC/metal pipes, featuring a battery-powered Q9 display, leak detection, and low maintenance. It installs via a saddle/tee into the pipe, measuring flow from 0.1 to 15 fps, making it ideal for potable water, agriculture, and general water management.
The AQUAsonic® is a FLOMEC insertion ultrasonic flow meter for water, using sound waves to measure flow rate and total volume without moving parts, offering high accuracy (±2%) for irrigation/commercial use in PVC/metal pipes, featuring a battery-powered Q9 display, leak detection, and low maintenance. It installs via a saddle/tee into the pipe, measuring flow from 0.1 to 15 fps, making it ideal for potable water, agriculture, and general water management.
Key Features & Technology
Technology: Ultrasonic (Transit-Time) – Measures time for sound pulses to travel upstream vs. downstream to calculate velocity.
No Moving Parts: Means zero maintenance, extended life, and easy winterization.
Accuracy: High precision, typically ±2.0% of reading.
Display: FLOMEC Q9 battery-powered computer display for local readings.
Leak Detection: Detects very low flows (down to 0.1 fps), helping find leaks.
Units: Factory calibrated (gallons/liters) with configurable engineering units.
The FLOMEC AQUAsonic Series Insertion Ultrasonic Flow Meter
offers specifications including a flow range of 0.1 to 15 fps, ±2% accuracy, and an IP67 environmental rating for various water metering applications.
General Specifications
According to data sheets from sources such as Global Test Supply and Accu-Flo, the following specifications apply to the AQUAsonic meter series:
Specification
Details
Flow Range
0.1 to 15 fps (0.03 to 4.6 m/s)
Accuracy
Typically ±2% of reading
Operating Pressure
203 psi @ 73°F (14 bar @ 23°C) for socket tee; 150 psi @ 73°F (10 bar @ 23°C) for saddle mount
Operating Temperature
32°F to 140°F (0°C to 60°C)
Pipe Sizes
Tee: 1 in., 1½ in., 2 in., 3 in., 4 in. Saddle: 6 in., 8 in., 10 in., 12 in.
