SERIES A1

Categories: Flow, Flow Meters

Features & Benefits

Unique package combines Turbine and LCD into a self-contained, compact, economical meter
Local Display Computer features: 2 Non-Volatile Totals (Batch Total = Resettable, Total = Non-resettable) and Rate of Flow
Output capabilities available to communicate with process control equipment
Lightweight, compact design allows for easy installation
12 selectable engineering units (gallons or liters are standard defaults)
Factory calibration
AAA Alkaline battery life: 2 years

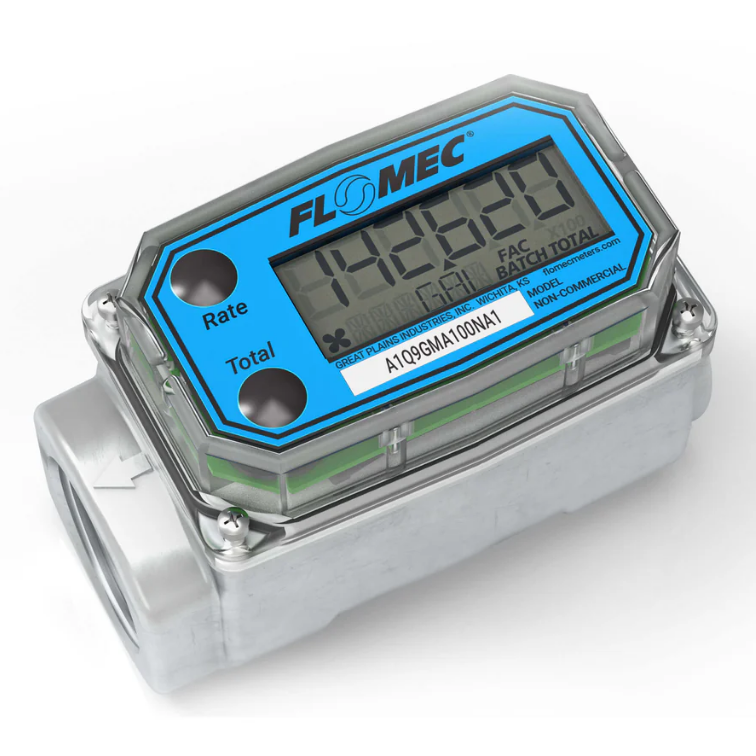

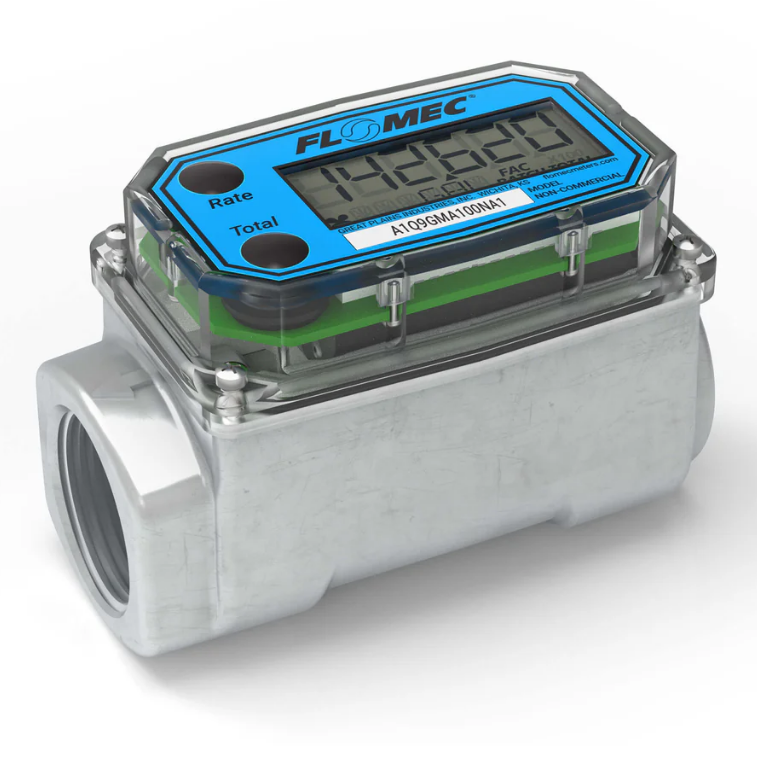

A1 SERIES ALUMINUM TURBINE METER

Fuels | Thin Petroleum-based Fluids

FLOMEC® A1 Series Turbine Meter with Q9 Display is designed as a self-contained, battery-powered unit. Select the A1 Aluminum meter when you need an accurate meter for thin petroleum-based fluid applications. Intrinsically safe for use in hazardous areas. NOTE: If the meter includes any module (4-20mA or Pulse Out) that introduces external power, then all intrinsic safety approvals are voided.

Technical Sheets

Instruction Manual
Catalog Page

Specifications

Flow Range:
3 – 50 GPM (11 – 190 L/min)
Accuracy (% of Reading):
+/- 1.5%
Technology:
Turbine
Pressure Rating:
300 PSI (20.7 bar)
Operating Temperature:
0° F to 129° F (-18° C to 54° C)
Connection Type/Size:
NPT (Female), 1-inch
Pipe Size:
1-inch
Meter Housing Material:
Corrosion-Resistant Aluminum
Wetted Materials:
316 Stainless Steel | Aluminum | Ceramic | Nylon | Tungsten Carbide
Warranty:
2-yr meter warranty
UPC:
031401009125
Approvals:
CE, ATEX, NEMA 4, IP65, FM Approved, c-us FM Approved, IEC/IECEx
