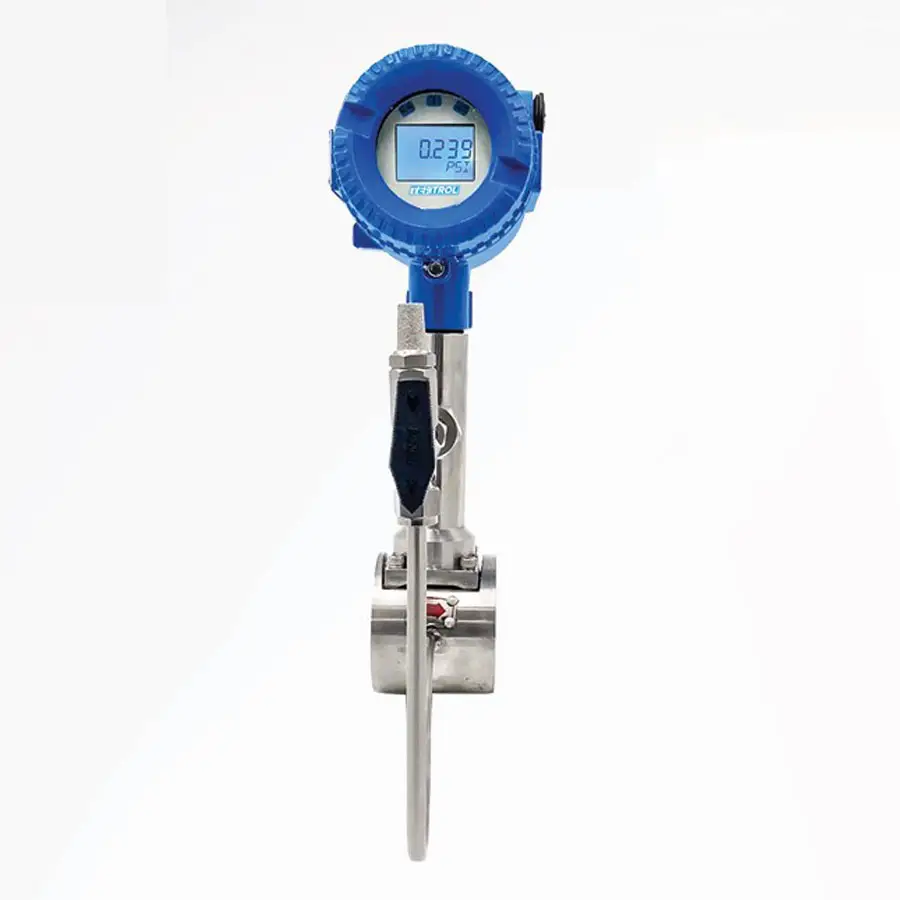

Tek-Vor 1300C Vortex Flow Meter is a versatile instrument that calculates the mass flow, volumetric flow rate, temperature, pressure, and density of any liquid, gas or steam through a pipeline. It finds widespread application in several industries including Petrochemical, Chemical, Pharmaceutical, Food and Beverage, Water and Wastewater Treatment. This flow meter operates on the principle of Karman Vortex Theory. It has 2 line LCD display with 3 button control. Tek-Vor 1300C in-line flow meter is designed for use in 1 to 12” pipes. It provides better stability and good accuracy.
A TEK-VOR 1300C VORTEX FLOWMETER
| Nominal Diameter | ½” to 12″ (15 mm to 300 mm) | |||
| Measurement Range in Ft/sec (m/s) | Size | ½” to 1″ (15 to 25 mm) | 1- ½” to 12″ (40 to 300 mm) | |
| Fluid Flow Rate | Steam | 13 to 230 ft/sec (4 to 70 m/s) | 6.5 to 230 ft/sec (2 to 70 m/s) | |
| Gas | 13 ft/sec to 200 ft/sec (4 to 60 m/s) | 6.5 to 200 ft/sec (2 to 60 m/s) | ||
| Liquid | 1 to 23 ft/sec (0.3 to 7 m/s) | 1 to 23 ft/sec (0.3 to 7 m/s) | ||
| Accuracy | ±1% of Reading For Multivariable Version: Temperature ±1 °F Pressure: 0.75% FS | |||
| Repeatability | 0.3% of F.S. | |||
| Output | 4 to 20 mA and Pulse 4 to 20 mA, Pulse and HART 4 to 20 mA, Pulse and RS485 modbus | |||
| Maximum Process Pressure Limit | AS Per Flange Rating | |||
| Process Temperature Range | -40 °F to 302 °F (-40 °C to 150 °C) or -40 °F to 482 °F (-40 °C to 250 °C) or -40 °F to 662 °F (-40 °C to 350 °C) | |||
| Ambient Humidity | 5 to 100% RH | |||
| Process Connection | Wafer, CL150 ANSI Flange, CL300 ANSI Flange | |||
| Electrical Connection | ½” NPT | |||
| Material | 304 SS, 316 SS | |||
